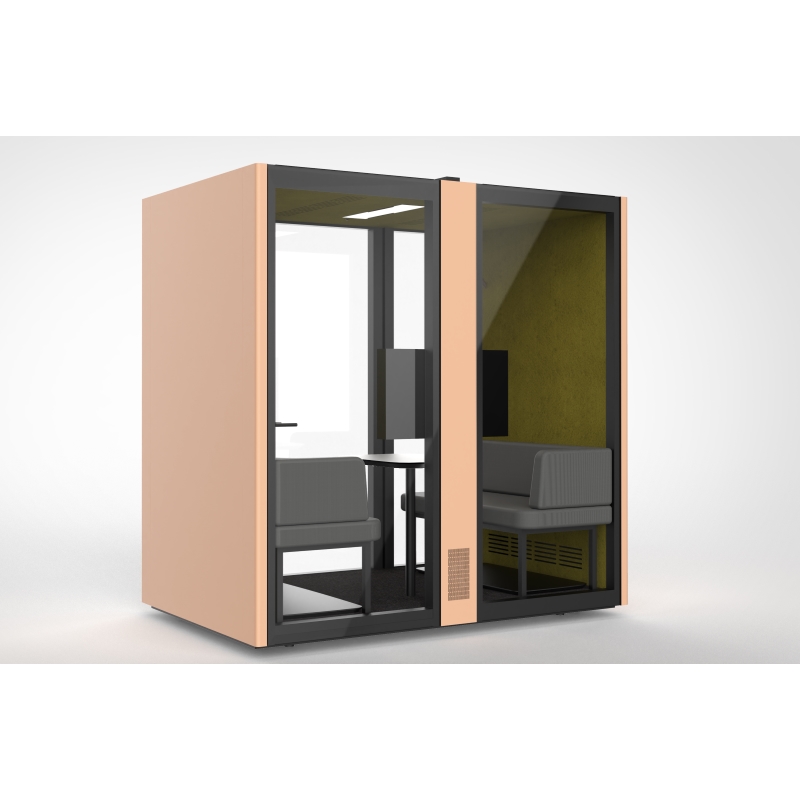

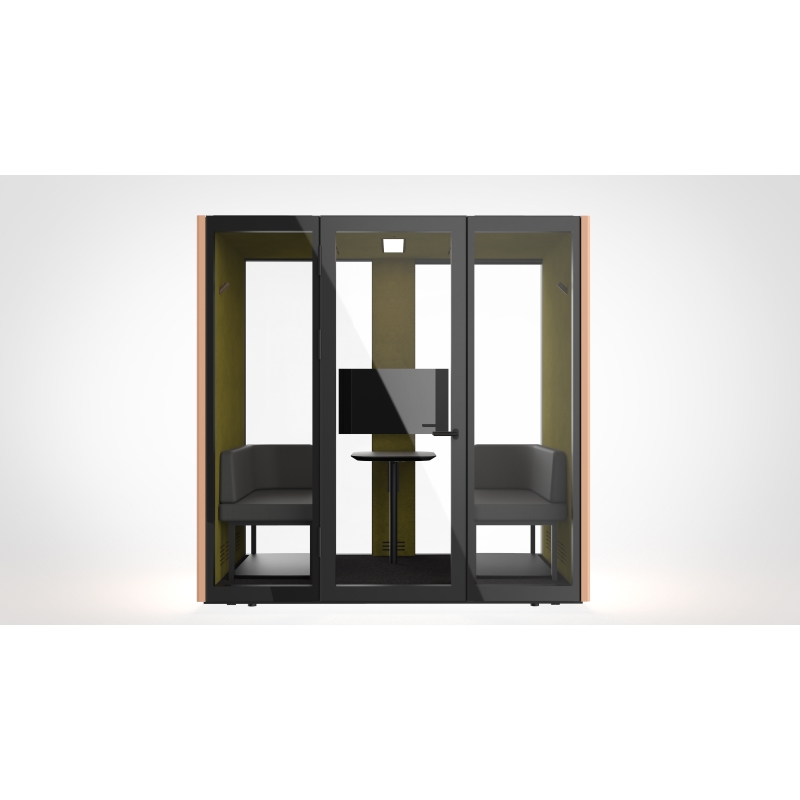

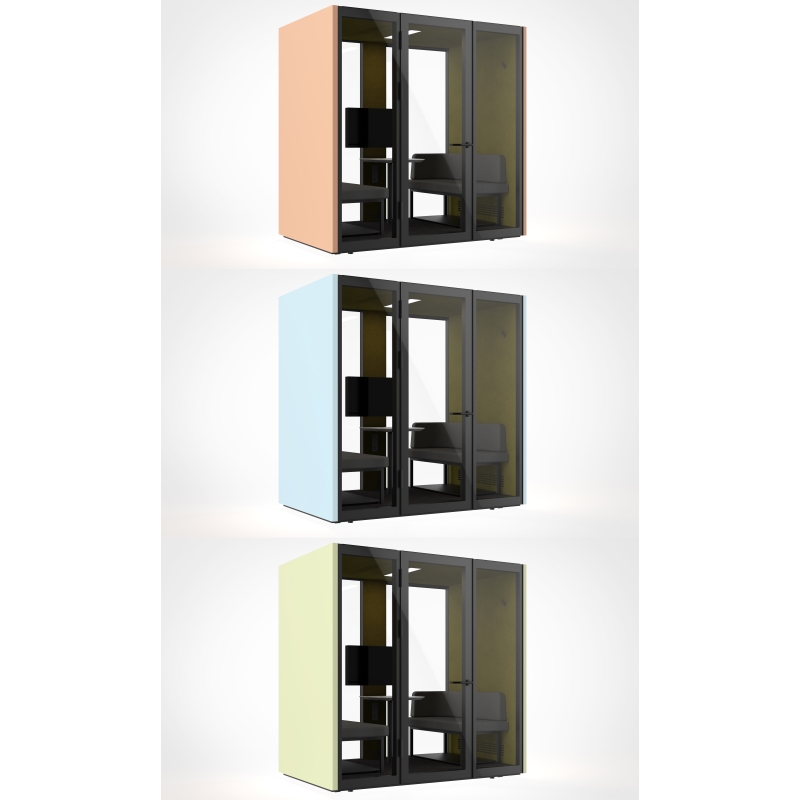

Q Cube – Quad Soundproof Privacy Pod

FAM Q Cube Telephone Booth

Q Cube offers an independent meeting space for 4 – 6 person comfortably without interruption from the surrounding. The quad soundproof booth gives meeting participants privacy and freedom of conversations. Elegant design enhancing team work and improving the aesthetics in the office. Built-in wheels enable the booth to be moved freely without dismantling. Equipped with two comfortable sofas, meeting desk and power socket, it will definitely improve the productivity at work.

Specifications:

• Stylish design from Germany
• Designed for 4 – 6 person
• In galvanised steel
• Soundproof, White (Powder Coated)
• Tempered Glass Front and Back
• Laminated Glass Door

Product Details:

• External Size[mm]: 2200W x 1500D x 2275H
• Internal Size[mm]: 2075W x 1375D x 2070H
• Height clearance required: 2350mm
• Weight: 748kg

Materials:

• 1.0mm Electro Galvanise Steel Panel
• White (Powder Coated)
• 50kg/m³ rock wool
• 9mm Acoustic Panel with magnet
• 6mm Tempered Glass Front & Back
• 10mm Laminated Glass Door
• Hinged Door with stainless steel handle
• Heavy Duty Wheels

Accessories:

• Power Socket 2 x Universal 3 Pin and 2 x USB (Wattage: 3250W)
• LED motion sensor light (6W 4000K)
• Ventilation fan x 4 – Fan speed: Fan speed: 750 RPM Noise Level: 29 dB(A) 619.64m³/h; Air Replaced every 0.72 minute. Air Pressure: 1.25mm/ H2O Input Power: 1.56W 0.13A Life Span: 50000h @ 40℃
• High Pressure Laminate (Water & Scratch resistant) suspended work top with leg (500 x 1000mm)
• Sofa x 2

Quad Cube 47.6W (power consumption)
